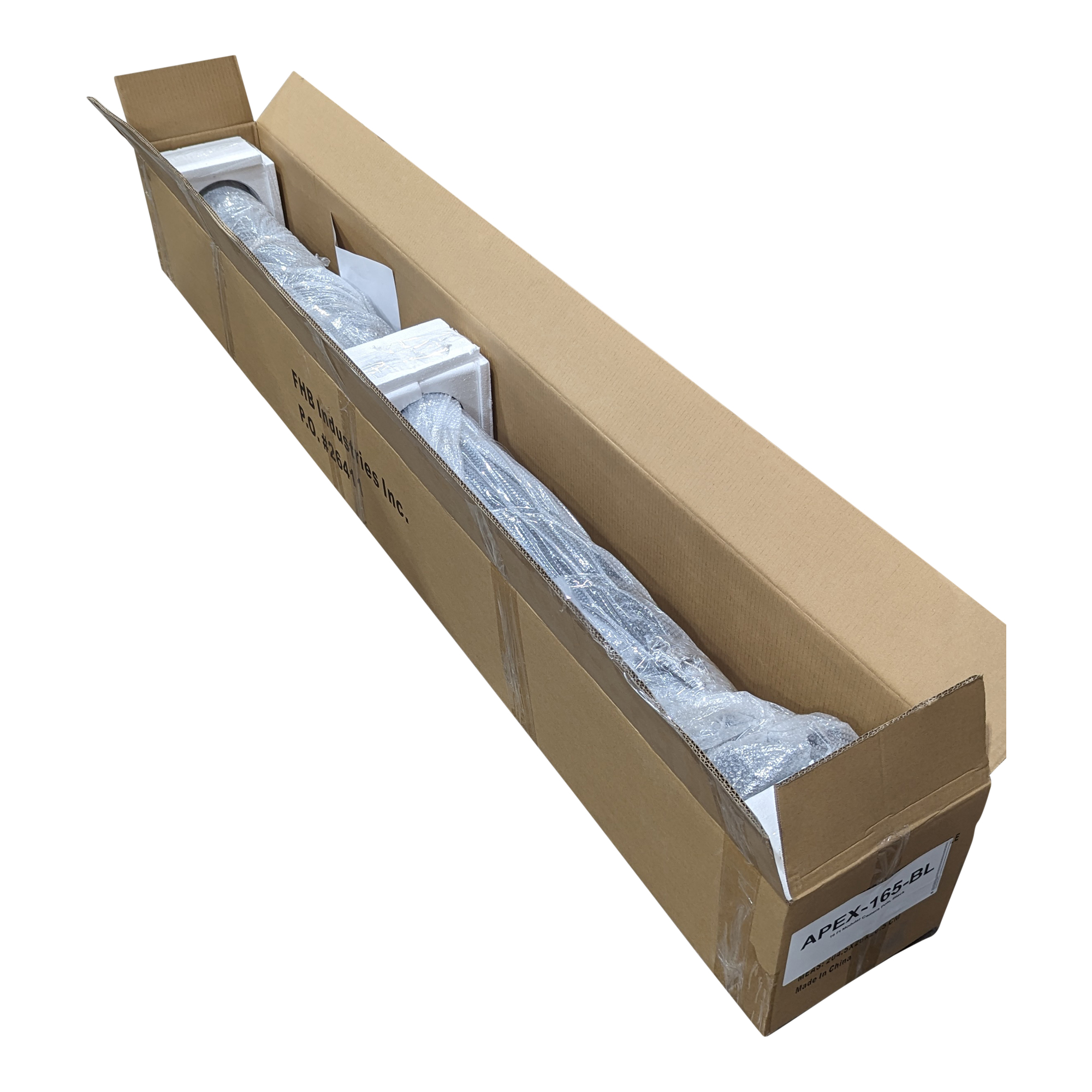

Modular Pole: 16.5’ Aluminum modular ( 3 sections) camera pole. Ships in a single box with all hardware, anchor bolts and tool bits for easy delivery and assembly.

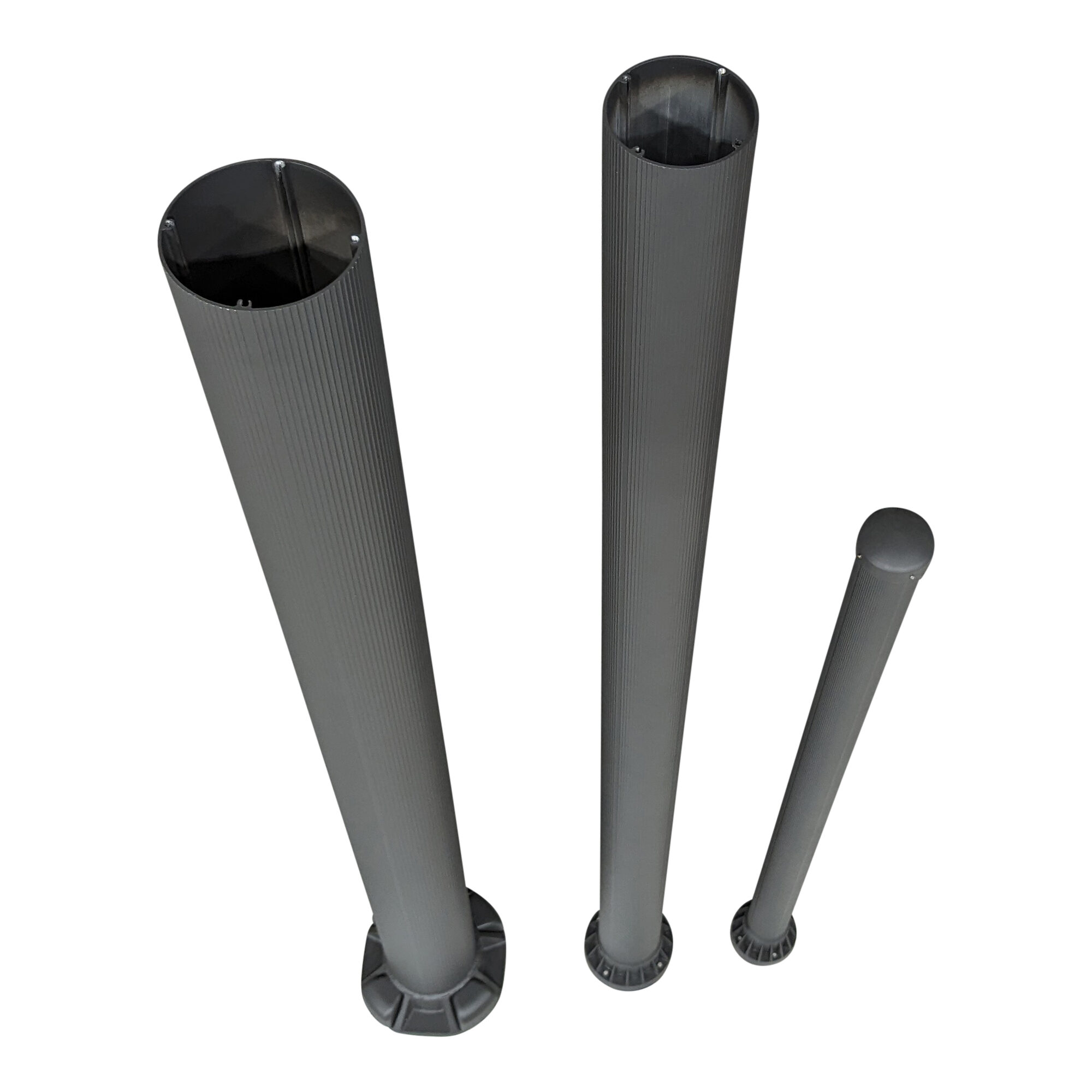

Sections: Base- 70″x5.6″, Mid- 75″x4″, Top- 76″x2.7″

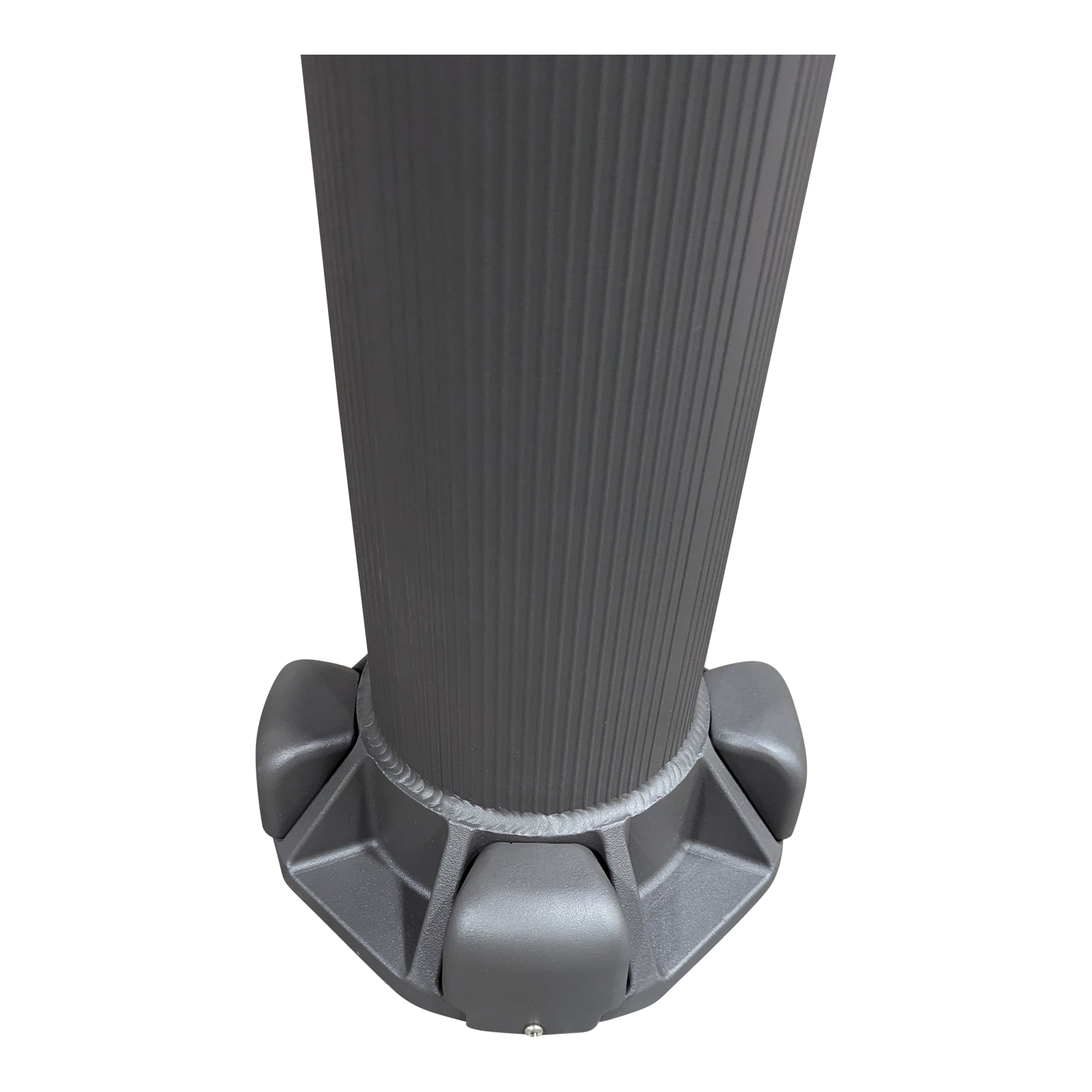

Material: Extruded 6063-T5 shaft with ridges to help alignment of sections and rigidity to reduce vibration. Die cast aluminum base with 4 die cast anchor covers.
Anchor Bolts: 4 Anchors with 2 nuts and 2 washers 2 lock washers. ASTM A-36 Steel. ECN 5267. 36,000 min. yield.
Finish: Gray Bronze Powder Coat.
Hand Hole Cover: Pole does not have a hand hole cover. Please utilize it’s modular design to terminate connections

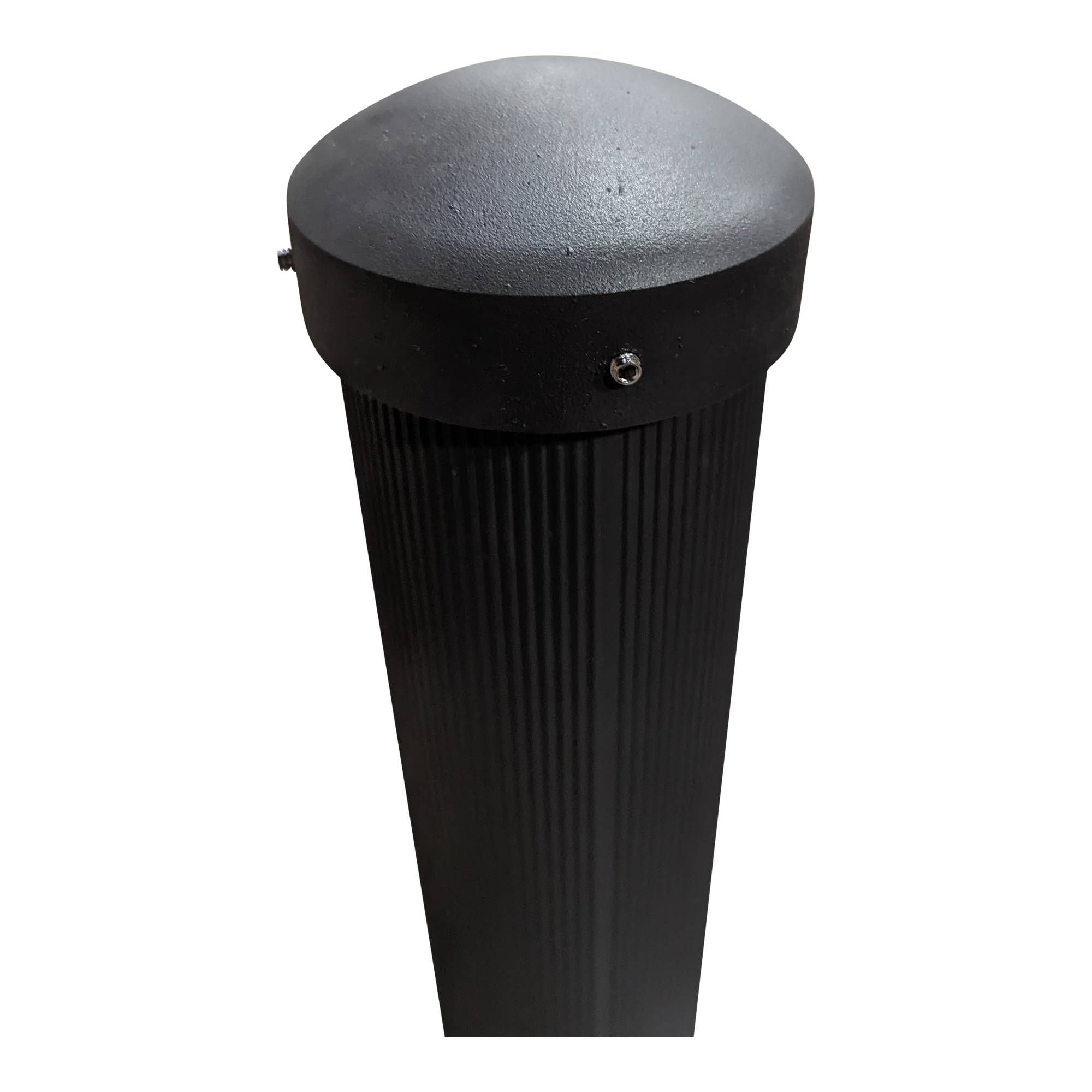

Pole Cap: Die cast aluminum pole cap installed on the top section with 4 screws.

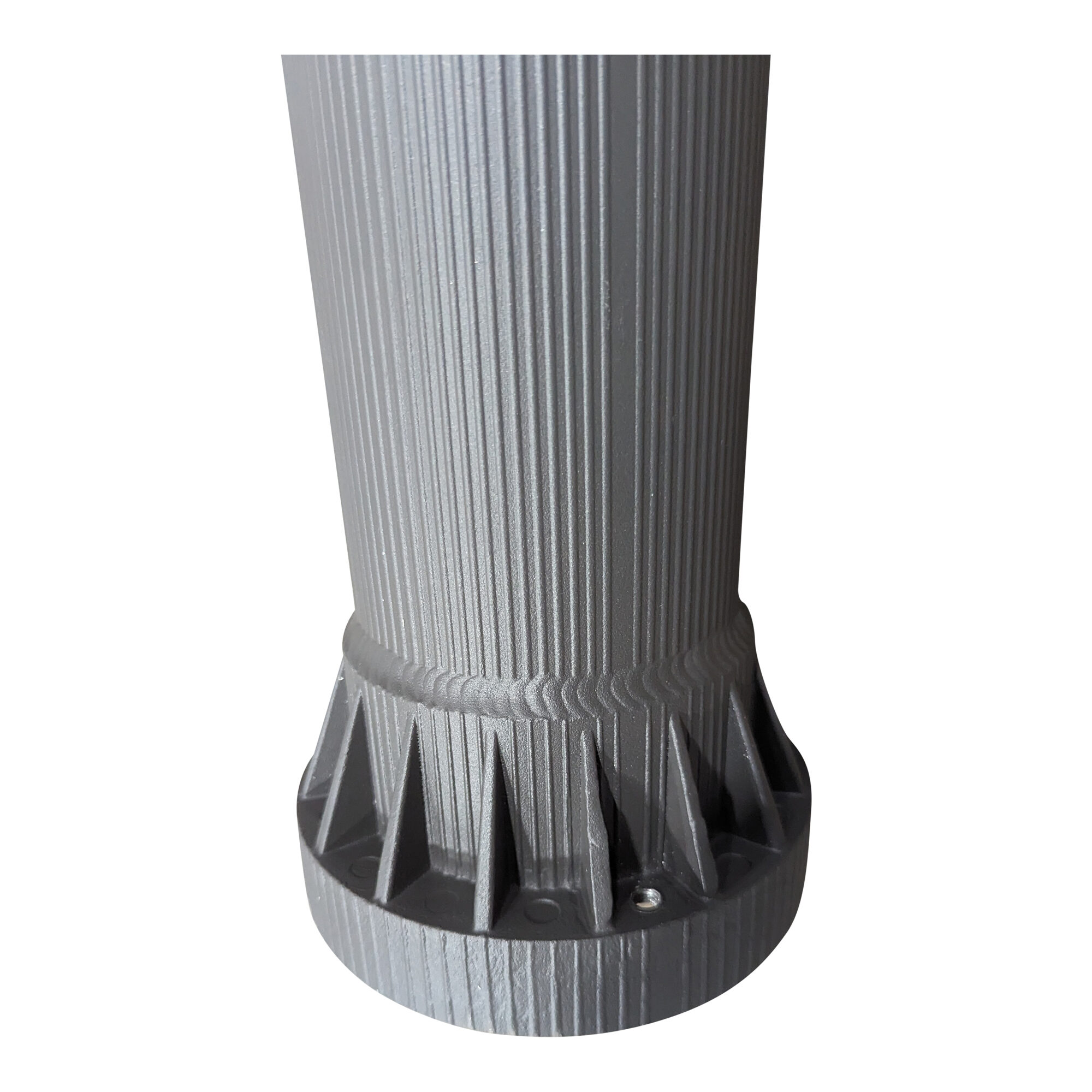

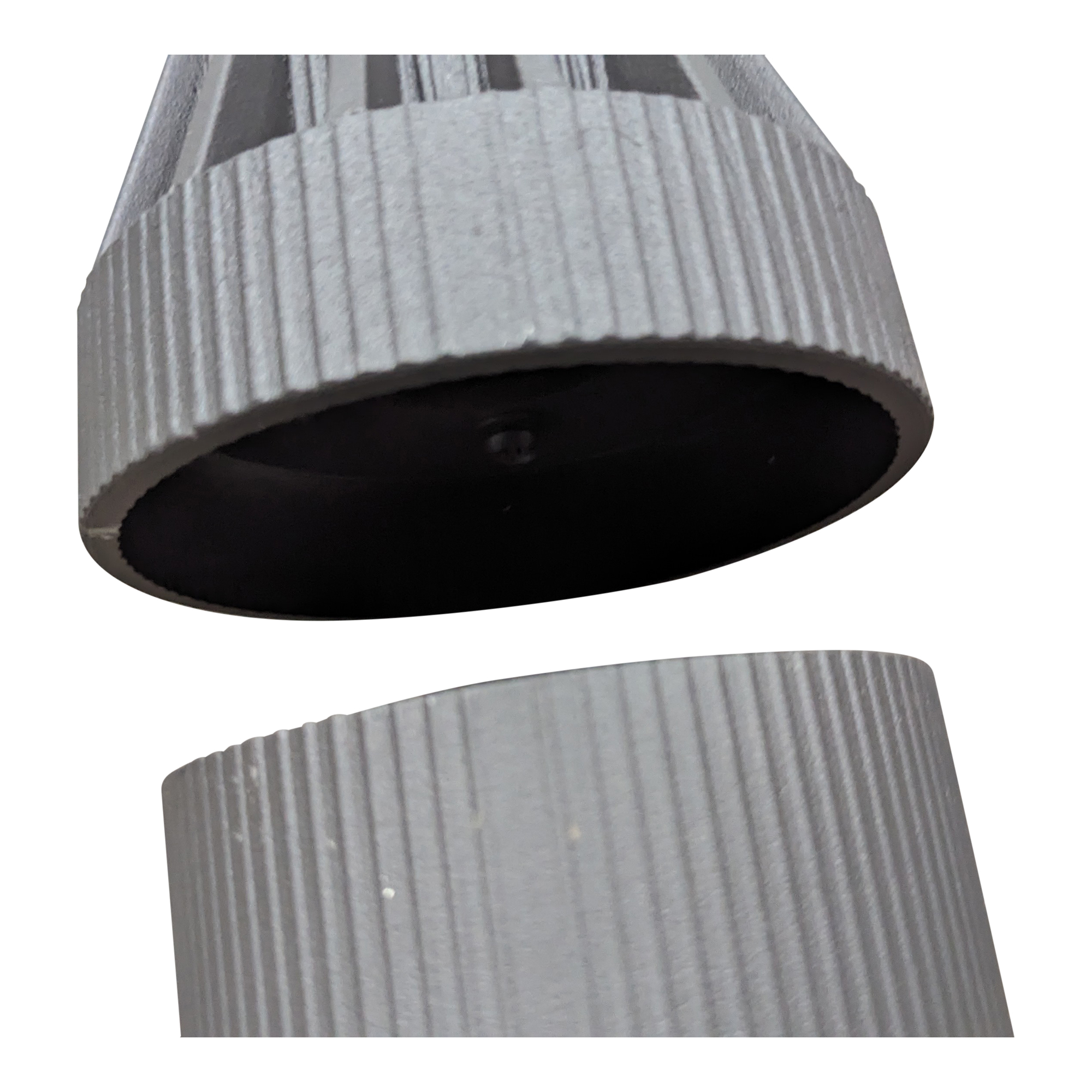

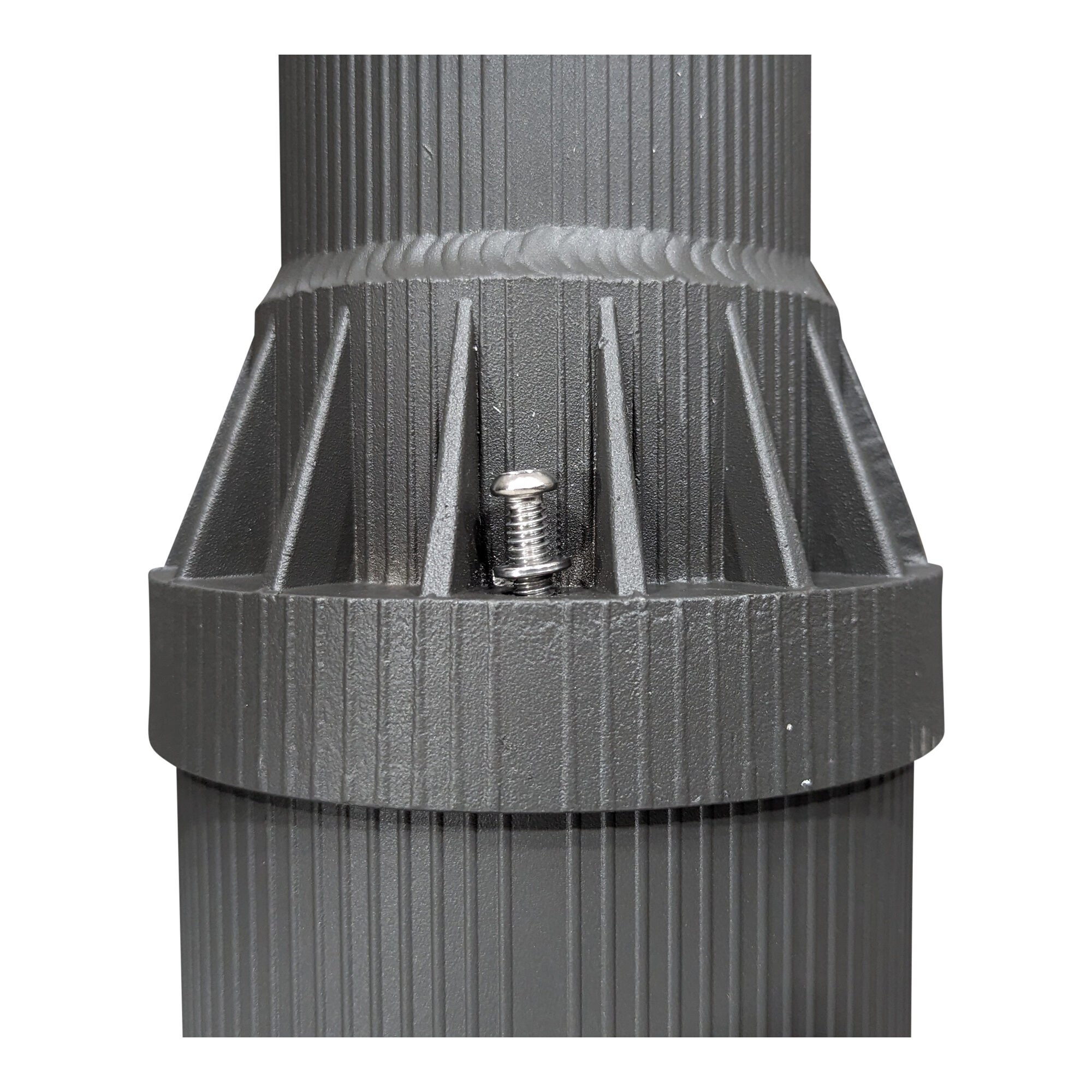

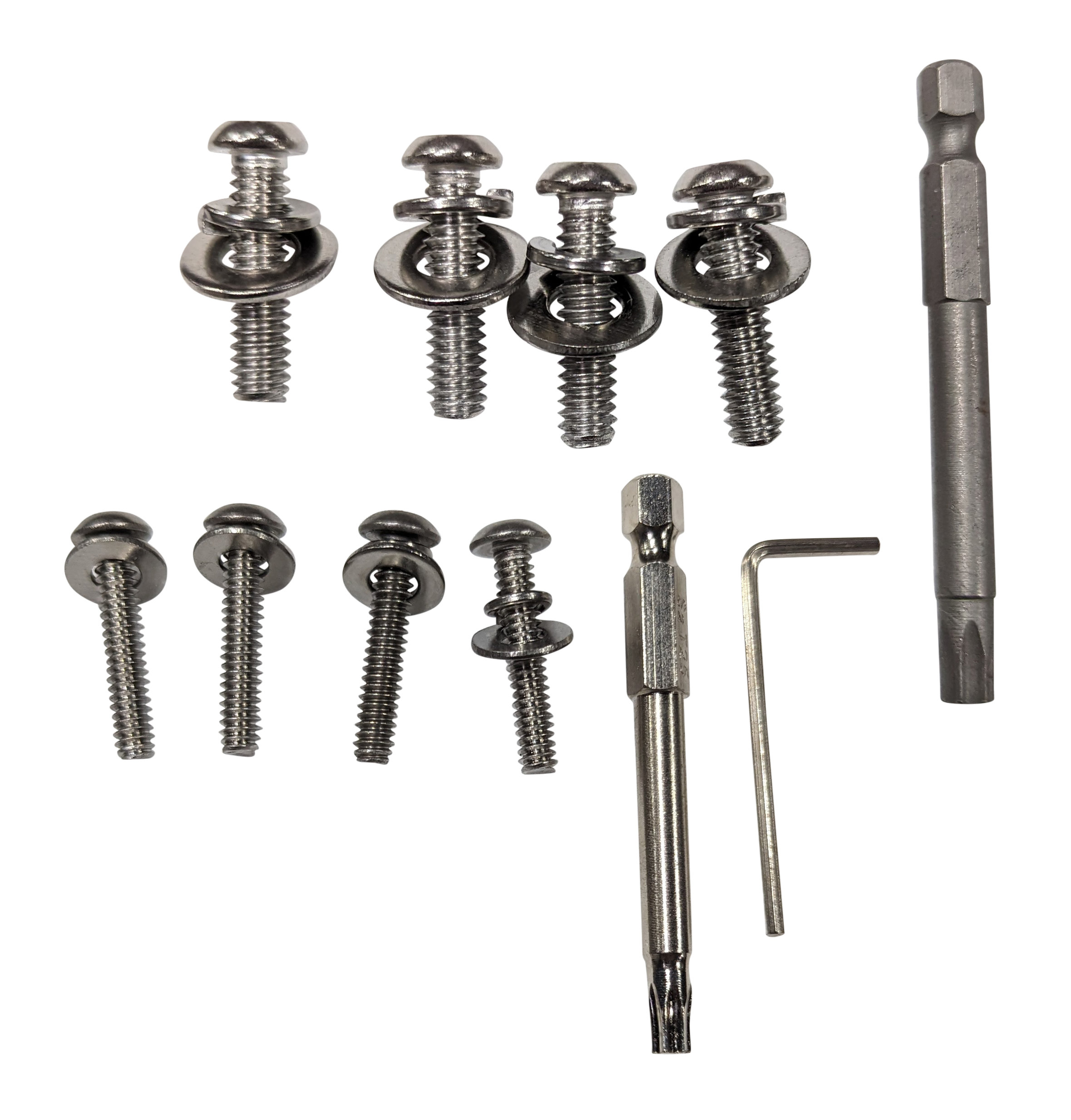

Section Assembly: Sections assemble with 4 Torx head screws, flat and split washers. Torx bits are included.
Camera Installation: The pole can be drilled at the site to accommodate wiring and installation.
EPA: 3.7 at 100 mph
APEX Modular Aluminum Camera Pole
$1,324.00
16.5 ft aluminum modular camera pole with 3 sections. Ships in one box with all hardware, anchor bolts and tool bits. Easy delivery and assembly.
SKU: CPAX-165-BL
Categories: Aluminum Poles, Easy- install Modular Poles, Round Aluminum Poles, Round Poles
