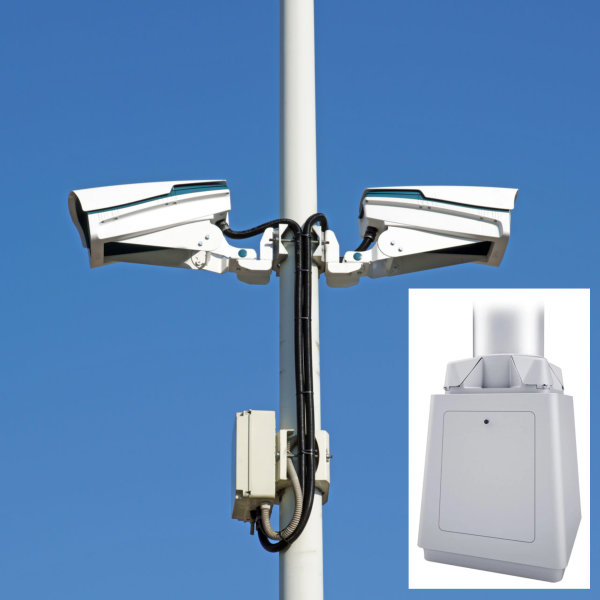

30′ Round Tapered Aluminum Camera Poles With Gear Base | CP-30RTAG

Tapered Aluminum poles with breakaway Gear Box.

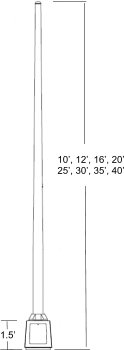

Pole Lengths: 30 ft. (from the base of the Gear Box. The Gear Box is 1.5′ tall)
Material: This round aluminum tapered camera pole comes complete with a gear box specifically designed to support this pole. The pole shaft is extruded tube of 6063 aluminum alloy per ASTM B221. Heat treated after welding. No longitudinal welds.. Our Aluminum camera poles are designed to American Association of State Highway & Transportation Officials (AASHTO) standards and meet all applicable material ASTM standards.
Gear Box: Breakaway gear box is made of cast aluminum and includes the access door, screw and bearing washers. Since the gear box and the pole come as a kit, they fit perfectly and are painted at the same time to match your color choice to deliver an integrated look.
Finishes: Please select from: Black, Bronze, White, Gray, or Natural Aluminum finish.

Dimensions:
Height: 30′
Bolt Diameter: 15″
Bolt Projection: 3.5″
Wall Thickness: 0.188″
Butt Diameter: 10″
Top Diameter: 6″”
Gear Box Base: 15 3/8″”
Gear Box Height: 1.5′
